A sand pad that keeps slumping onto the patio, a boundary that drops a metre to next door, a limestone wall leaning after twenty winters. Tell us what the ground is doing and we will line up a local wall builder to look at it and price it in writing.

Why so many Perth blocks need a wall

Perth looks flat from the freeway, but most suburban blocks are not. The Swan Coastal Plain is built from old dunes, and developers have spent decades turning those dunes into level house pads. The result is a city of small steps: a block sitting half a metre above its neighbour, a backyard terraced into two levels, a front garden held up off the footpath. Every one of those steps is held by a retaining wall, and a fair number of the older ones are tired.

Retaining Wall Perth puts homeowners in touch with independent local wall builders for new walls, replacement walls and repairs, across the metro area from the northern corridor down through the southern suburbs and up into the hills. You describe the job, a builder looks at the site, and you get a written price for that specific wall.

Sand changes everything

The ground under most Perth houses is sand, and sand behaves differently from the clay that most retaining wall advice is written for.

It drains fast, until it doesn't. Clean sand lets rain straight through, which is good. But where a wall has no drainage behind it, or the sand has a lot of fine organic matter in it, water can sit against the back of the wall after winter storms and push.
It runs when it is dry. A cut face in dry sand will not stand up on its own for long. Builders need to bench and support the excavation, especially along a boundary where the neighbour's slab or fence is close.
It has limestone under it in places. Through the coastal suburbs the sand sits on limestone caprock that can be close to the surface. That helps a footing in some spots and makes digging slow and noisy in others.
It is not the same across the city. Grey Bassendean sand on the eastern side of the plain, yellow Spearwood sand over limestone through the middle, loose dune sand near the beaches, Guildford clays along the river flats and the foot of the scarp, and gravel and granite in the hills. A wall that works in Joondalup is not automatically right for Kalamunda.

That is why we never quote a wall from a photo alone. Someone needs to stand on the block, look at what is being retained and where the water will go.

What makes a wall last

When a retaining wall fails, it is usually for one of three reasons, and none of them is the face material.

No drainage. A wall with no slotted pipe and no free-draining gravel behind it is a dam. Perth's winter rain arrives in bursts, and the pressure of saturated ground is far higher than dry sand.
A footing that was too shallow or too narrow for the height, particularly in loose sand or where the ground below the wall was itself fill.
Load the wall was never meant to carry. A fence bolted on later, a driveway moved closer, a pool or shed built on the high side. Walls are designed for the job they were given on the day they were built.

A properly priced quote addresses all three. If it doesn't mention drainage or the footing, ask why.

Approvals and neighbours

Walls on or near a boundary affect the people next door, and taller walls can need a building permit or planning approval from your local government. We cover this in detail in our council approval guide, and the short version is simple: confirm with your council before work starts, talk to the neighbour early, and get any agreement about a shared wall or fence in writing.

How the quote works

Call 08 7666 2963 or send the form with a few photos and rough measurements. A local builder will talk the job through with you, visit the site, and give you a written quote that names the wall type, height, length, footing, drainage and who removes the spoil. There is no charge for the quote and no obligation to go ahead. For budgeting before anyone visits, our retaining wall cost guide has 2026 price bands for each wall type.

Five ways to hold back Perth ground

Wall	Where it suits	Photo
Limestone Retaining Walls	Cut and reconstituted limestone block walls, the Perth default for sand pads, boundary level changes and garden terraces.
Concrete Sleeper Walls	Steel posts concreted into the sand with concrete sleepers dropped between them. Slim, quick to build and easy to put a fence on.
Timber Sleeper Walls	Treated pine or hardwood sleepers for low garden walls and raised beds, where a softer look matters more than a long service life.
Block & Engineered Walls	Interlocking segmental blocks and reinforced core-filled masonry for taller cuts, driveways and anything carrying a load.
Retaining Wall Repairs	Leaning, bulging, cracked or washed-out walls assessed, then repaired, partly rebuilt or replaced.

Wall

Where it suits

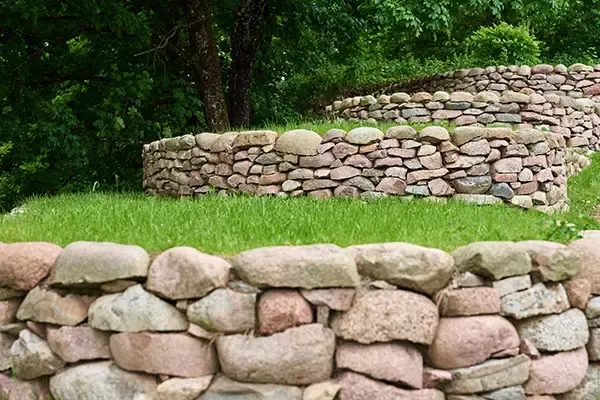

Limestone Retaining Walls

Cut and reconstituted limestone block walls, the Perth default for sand pads, boundary level changes and garden terraces.

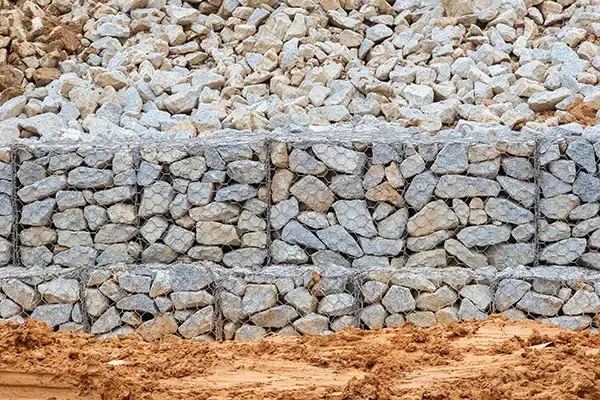

Concrete Sleeper Walls

Steel posts concreted into the sand with concrete sleepers dropped between them. Slim, quick to build and easy to put a fence on.

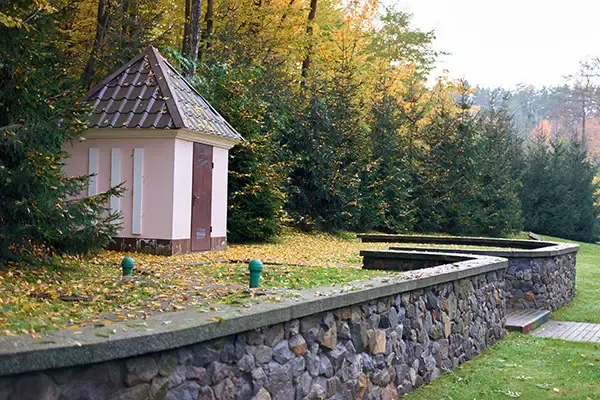

Timber Sleeper Walls

Treated pine or hardwood sleepers for low garden walls and raised beds, where a softer look matters more than a long service life.

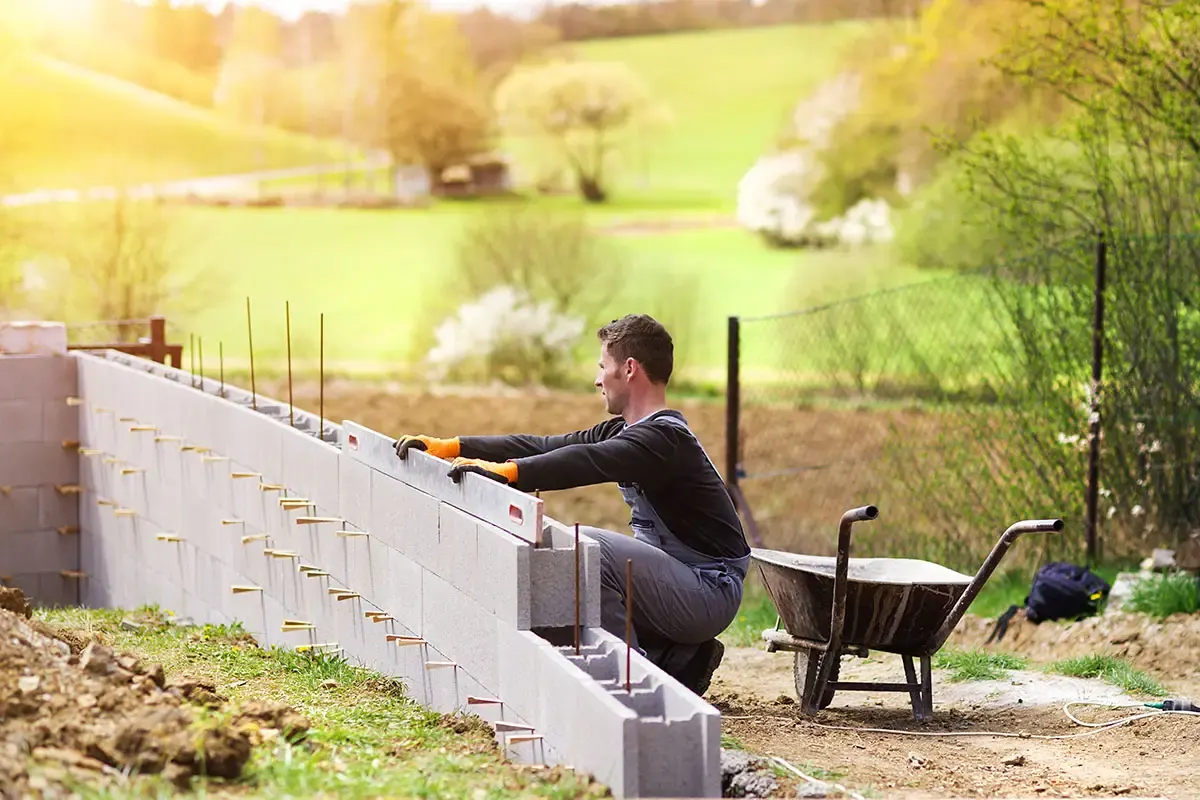

Block & Engineered Walls

Interlocking segmental blocks and reinforced core-filled masonry for taller cuts, driveways and anything carrying a load.

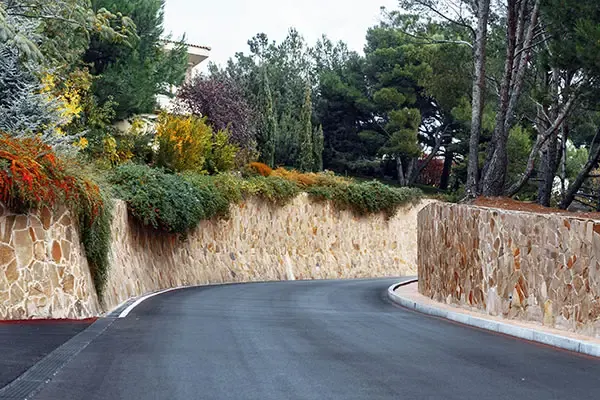

Retaining Wall Repairs

Leaning, bulging, cracked or washed-out walls assessed, then repaired, partly rebuilt or replaced.

Four things a good wall quote settles

Drainage priced in, not added laterMost Perth wall failures start with water, not weight. The quote should name the drainage behind the wall: slotted pipe, free-draining aggregate and where the water goes.

Footings to suit the sandLoose coastal sand, limestone caprock and hills clay all need a different footing. Ask what the wall sits on and how deep it goes.

Boundary walls handled properlyA wall on or near a boundary affects the neighbour and often carries the fence. That conversation, and any approval, belongs before the digging starts.

Ask to see the paperworkWe ask the contractors we work with to hold the registrations and insurance the job needs. Ask to see them before work starts.

Four corners of the metro, four kinds of ground

Also quoting in Joondalup, Wanneroo, Scarborough, Duncraig, Hillarys, Ellenbrook, Clarkson, Morley, Applecross, Bull Creek, Willetton, Canning Vale, Spearwood, Success, Harrisdale, Gosnells, Nedlands, Claremont, Cottesloe, City Beach, Mosman Park, Subiaco, Kalamunda, Mundaring, Lesmurdie, Roleystone, Kelmscott, Darlington and the suburbs in between.

Questions people ask before they commit

Which retaining wall type is most common in Perth?

Limestone block and concrete sleeper walls with steel posts are the two you will see most around Perth suburbs. Limestone suits the look of most Perth gardens and copes well in sand, while concrete sleepers are slimmer and quicker where space along a boundary is tight.

How much does a retaining wall cost in Perth?

It depends on the wall type, height, length, access and how much digging and drainage is involved. We keep 2026 planning ranges on the retaining wall cost page; the real figure always comes from someone measuring the site.

Do I need council approval for a retaining wall in Perth?

Sometimes. Height, whether the wall is near a boundary and whether it carries a fence or a driveway all matter, and Perth local governments word their requirements differently. Read our approval guide and confirm with your council before work starts.

Can a fence go on top of a retaining wall?

Often, yes, but the wall has to be designed for it. A fence adds wind load at the top of the wall, so posts usually need to be built into the wall or set behind it. Say you want a fence when you ask for a quote.

Who actually builds the wall?

This is a referral website. Walls are built by independent local contractors. We ask them to hold the registrations and insurance the job needs, and you are entitled to see them before any work starts.
